BOWREX™ 40.
A Helping Push.
Powerful assistance. Only when needed.
A portable, removable bow-assistance system for sailboats and displacement yachts up to 40 ft. Designed to provide controlled lateral thrust during docking and close-quarters maneuvering.
No hull drilling. No permanent installation. Deploy when needed and retrieve after use.
Three integrated assemblies.
Propulsion Housing

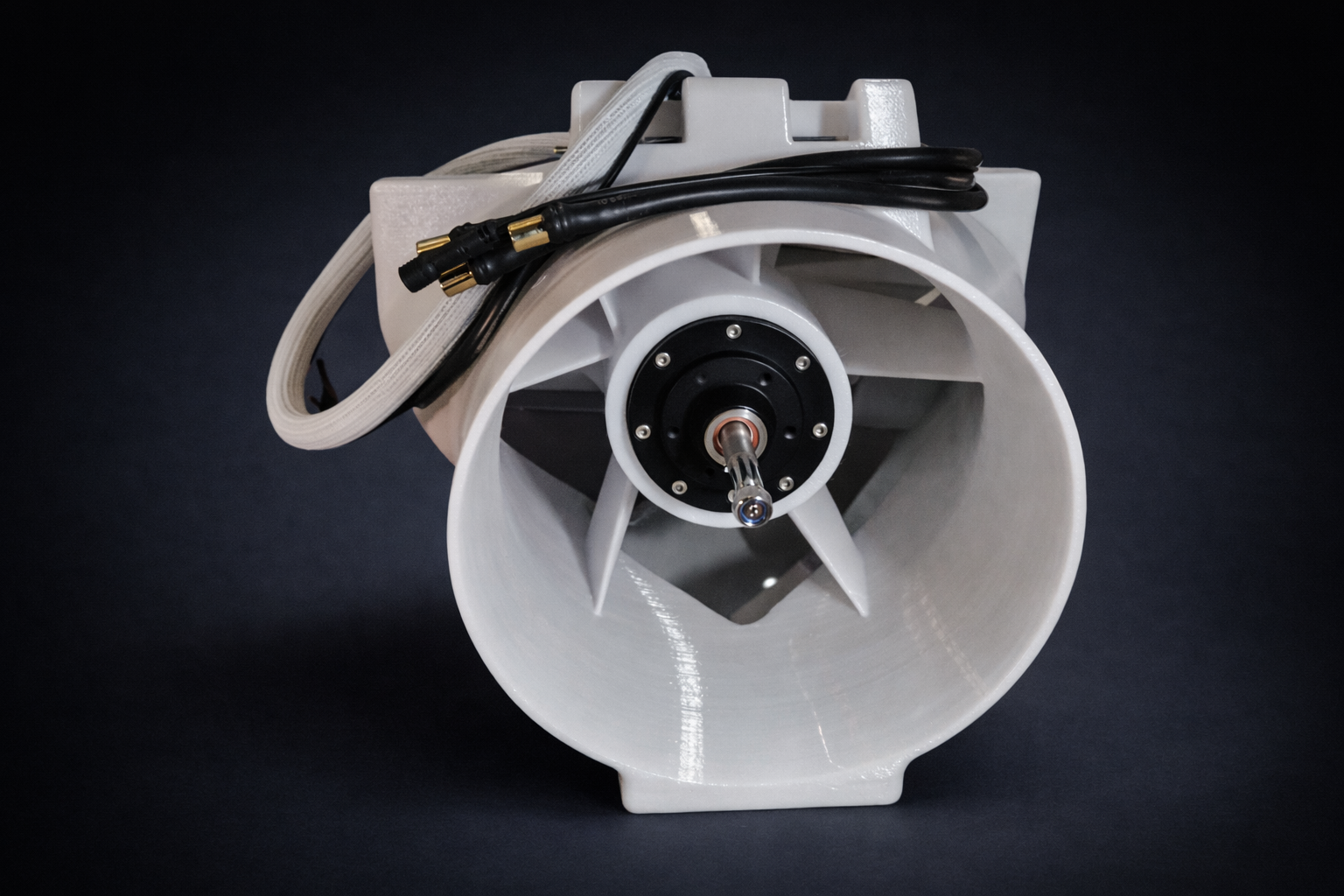

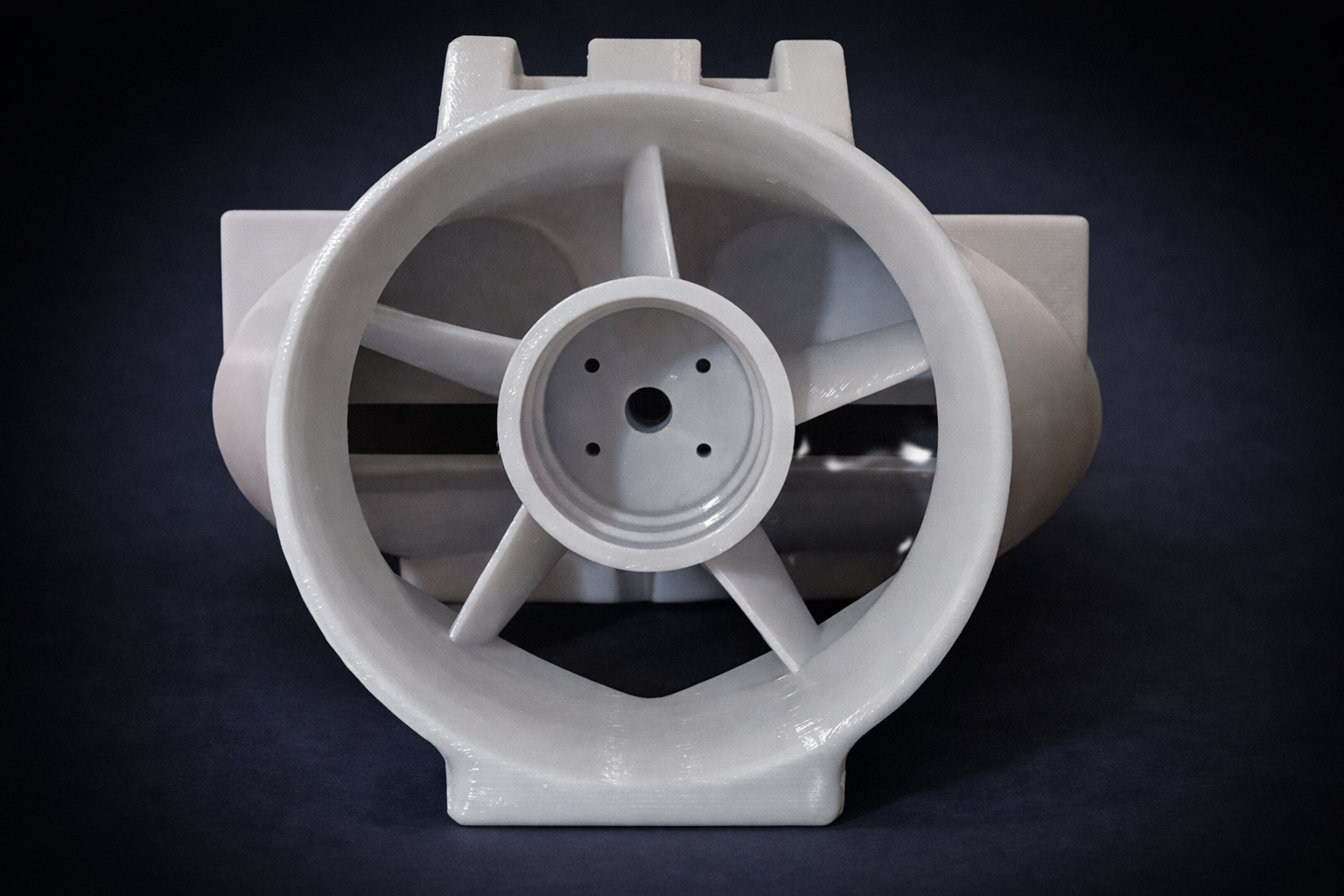

Electric motor, propeller, and stator-vane nozzle in one external housing.

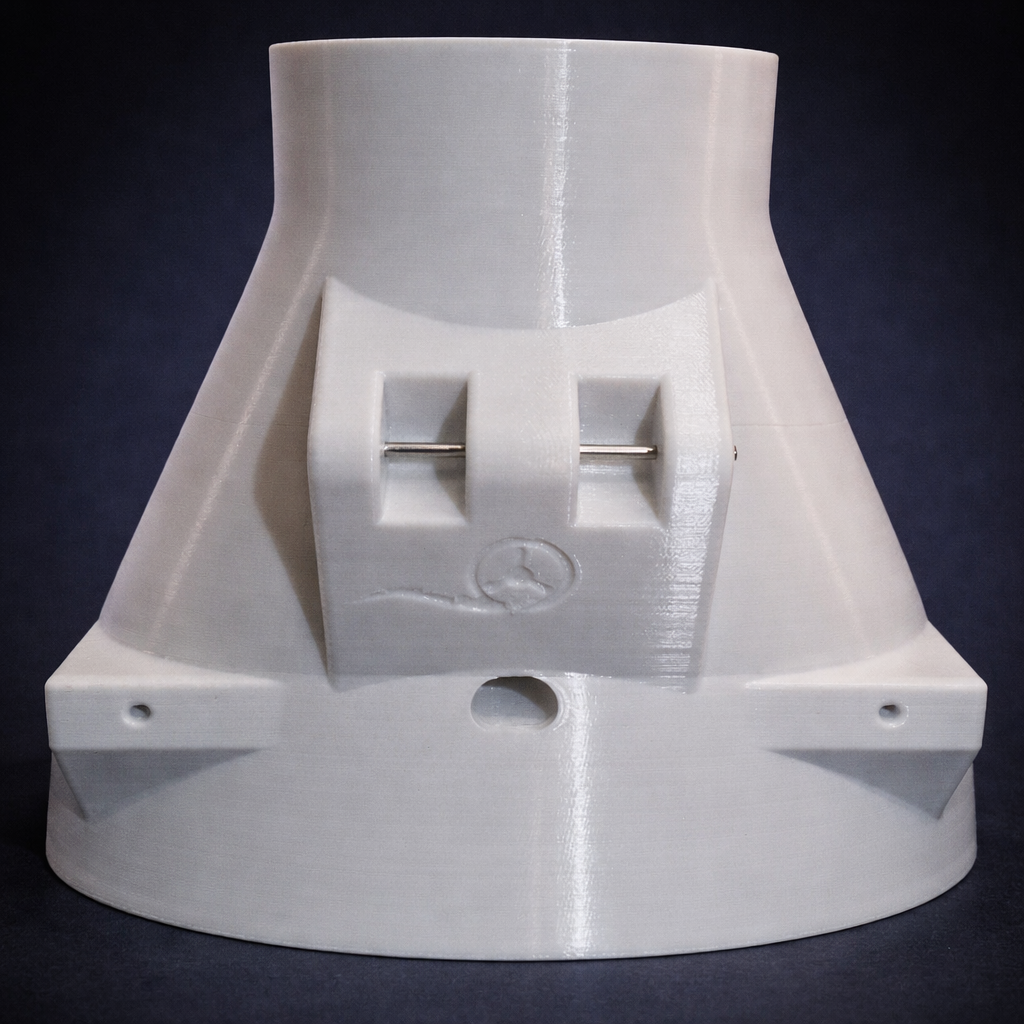

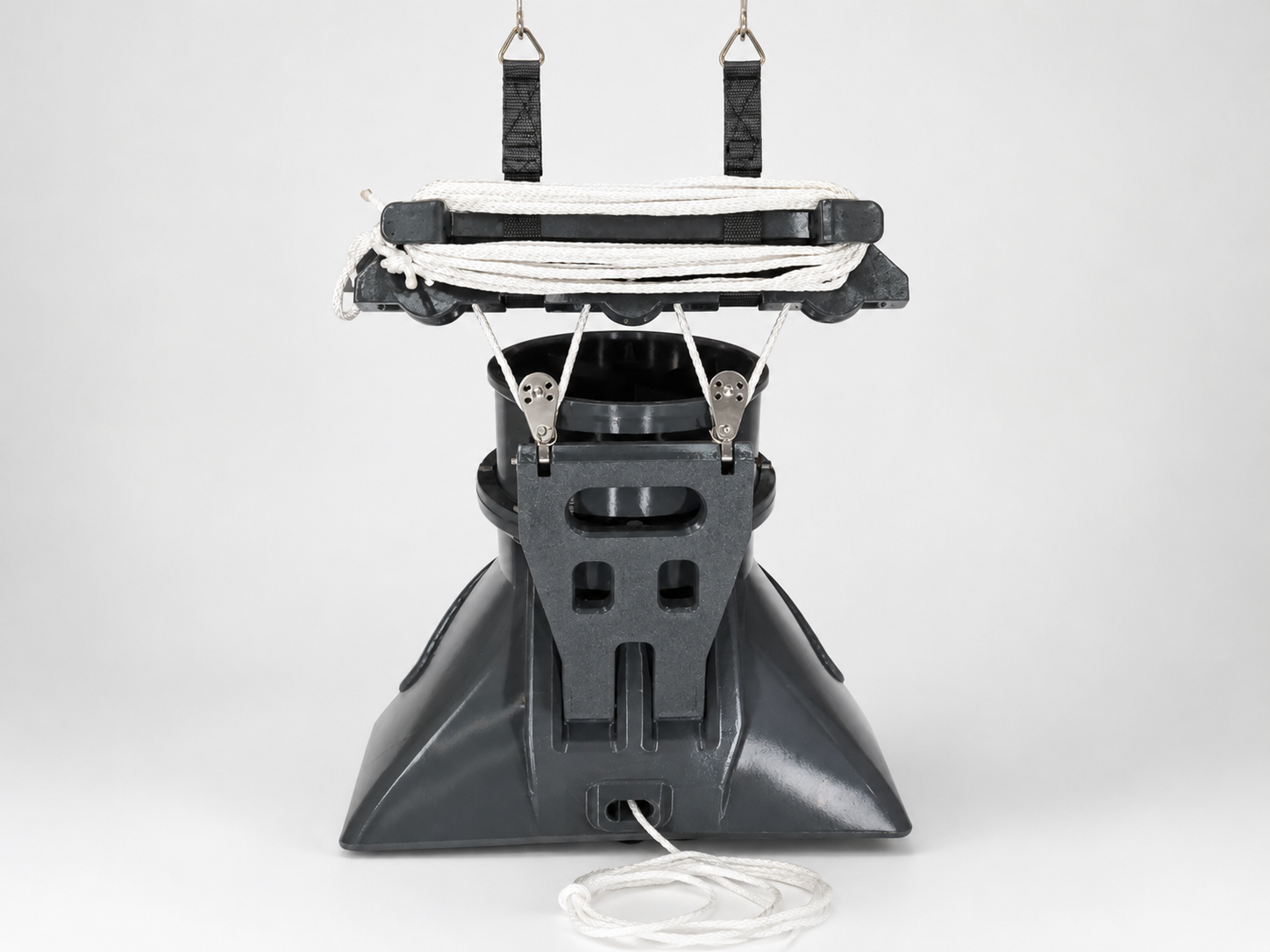

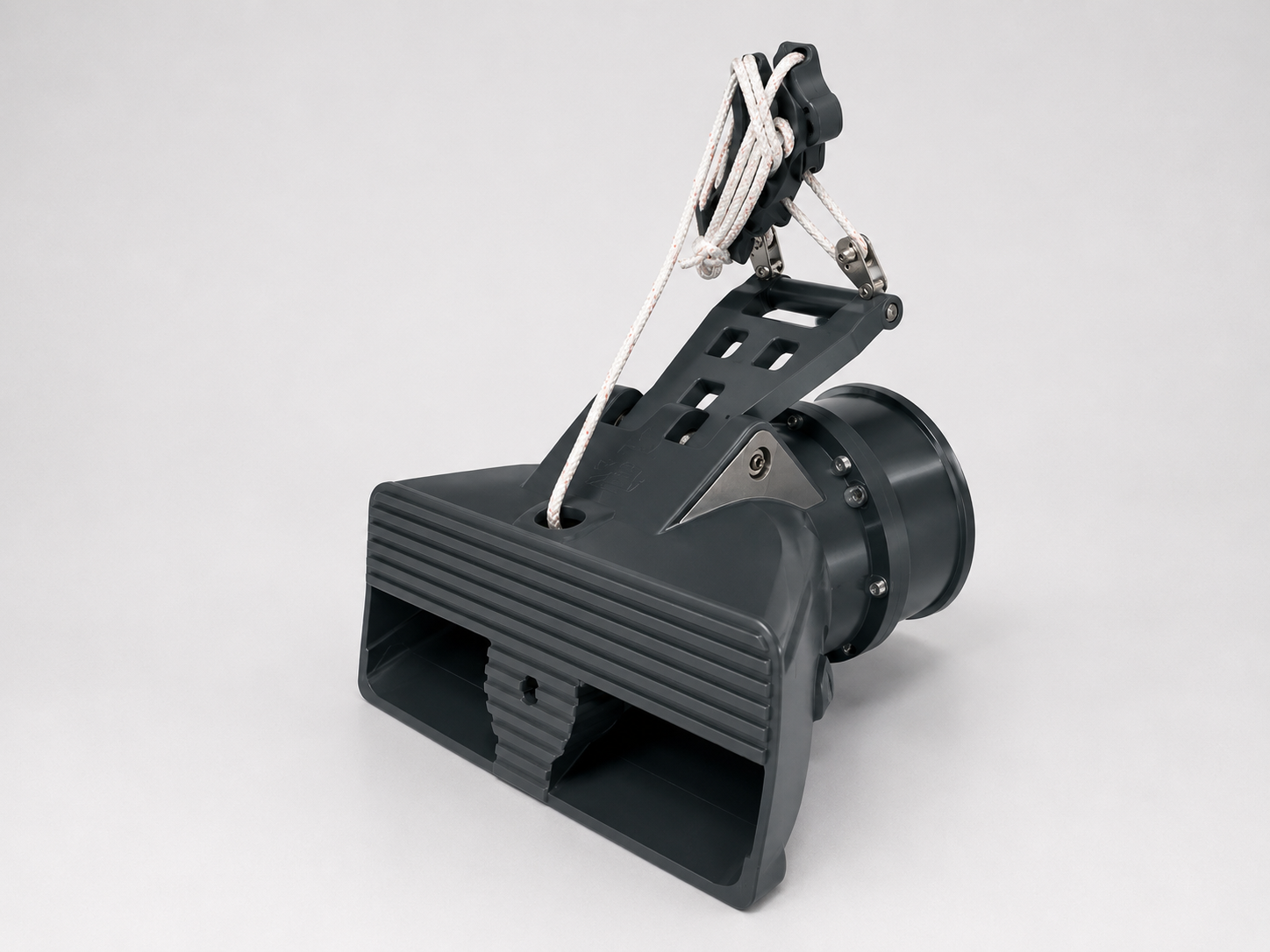

Easy-Lift System
Manual lifting bar and pulley arrangement for deployment and retrieval.
Electronic Control
Control enclosure and handheld wireless remote for on-demand bow assistance.
Main Parts.

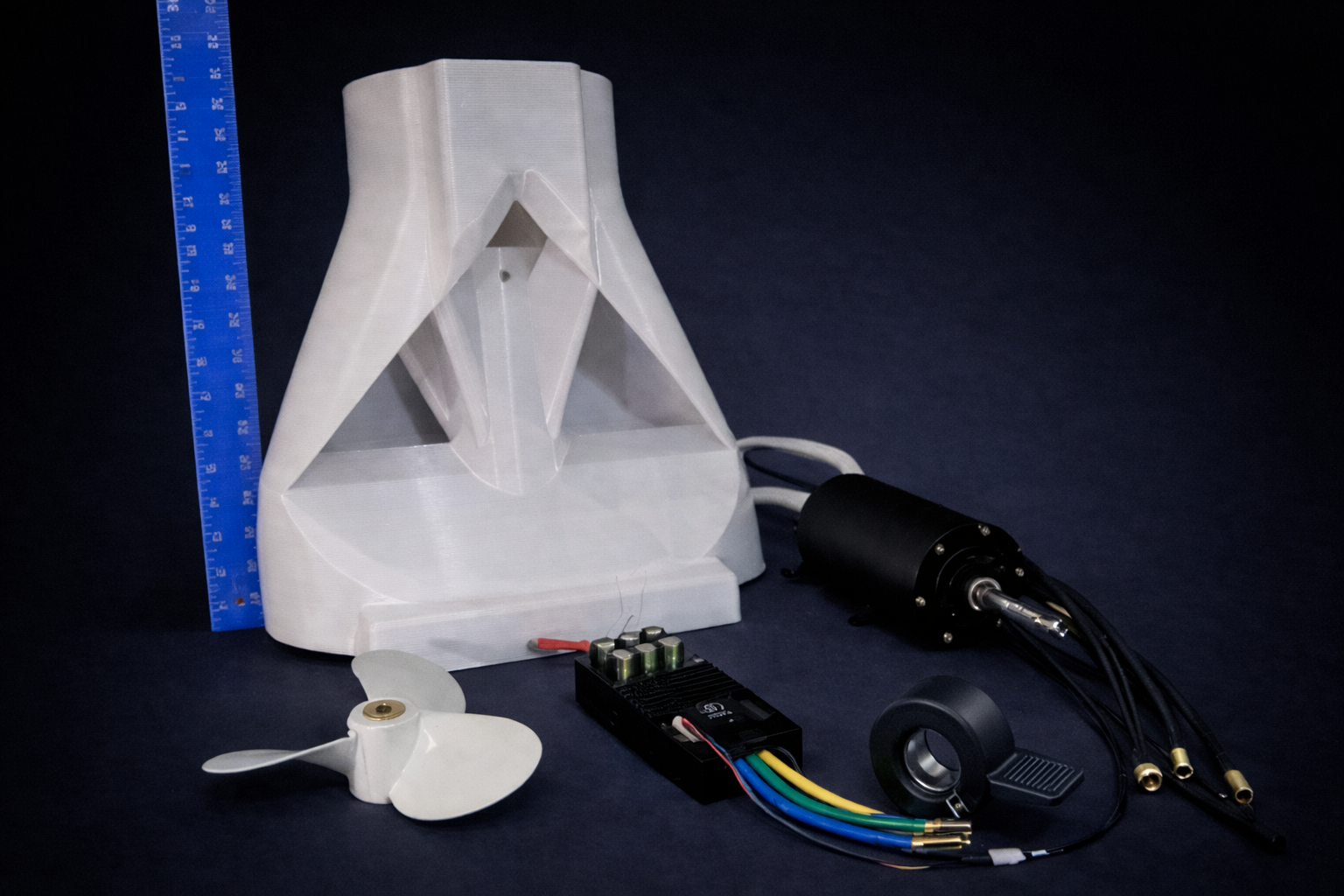

Main Parts Specifications
| No. | Component | Specification / Function |
|---|---|---|

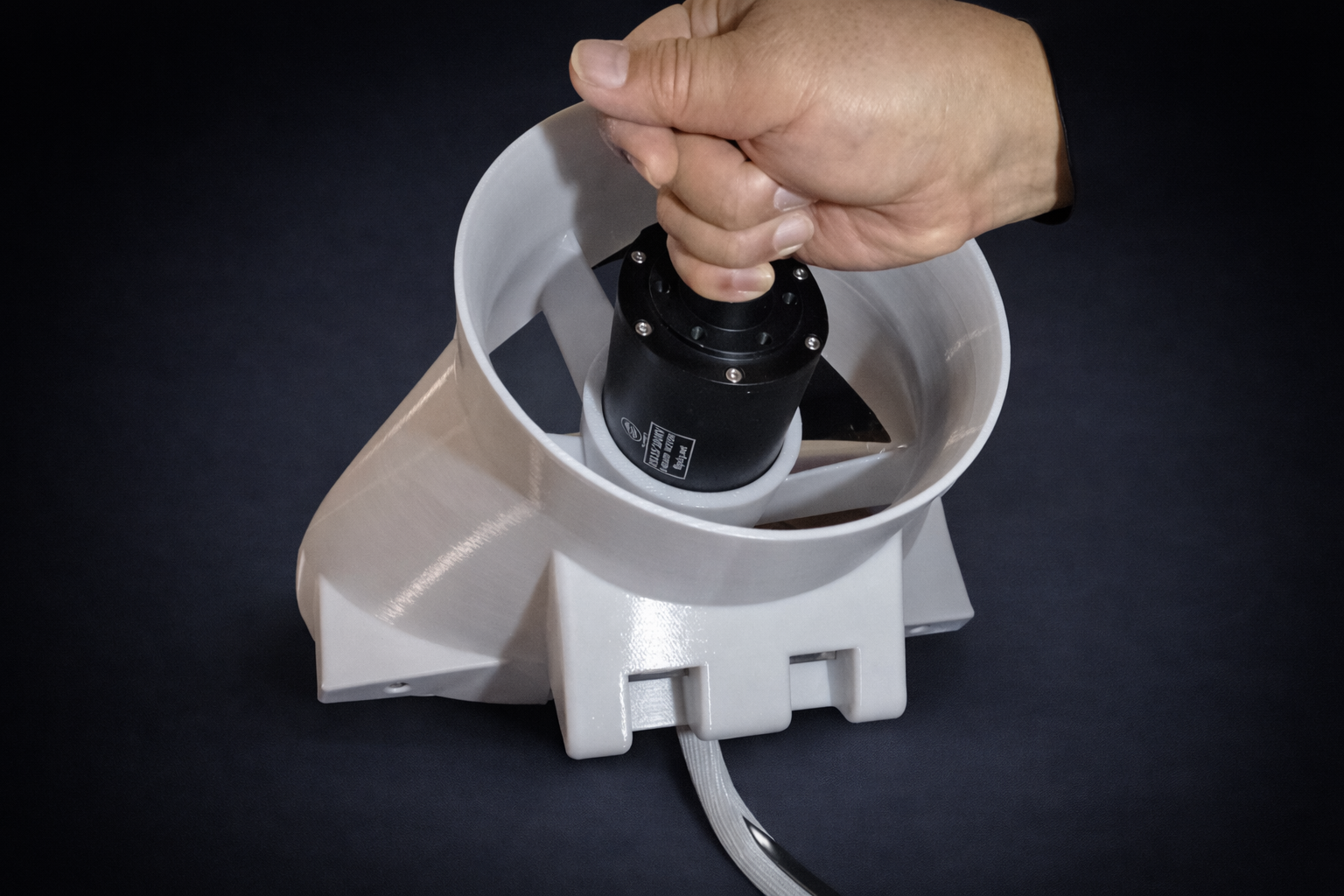

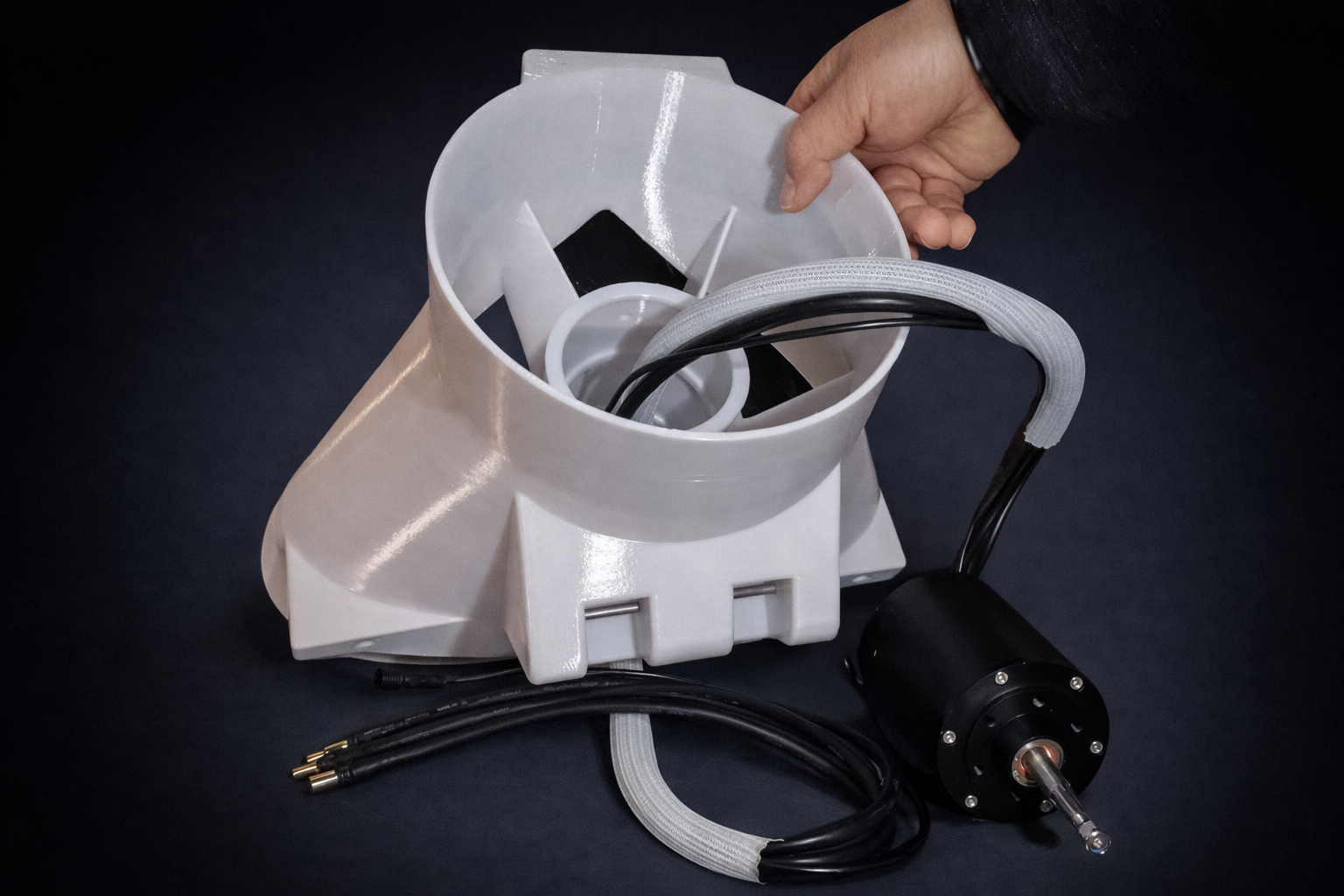

| 01 | Electric Motor | 56 V DC brushless motor. Rated power: 4 kW; maximum power: 8 kW. Cable length: 2 m (6.6 ft). OEM component. Specially configured for BOWREX 40. |
| 02 | Electronic Speed Controller (ESC) | 56 V DC operating voltage. Maximum controller capacity: 200 A. Electronic propulsion control. Made in China. |
| 03 | Anti-Spark Switch | Power switch designed to minimize sparking during system power-up. Made in China. |
| 04 | Control Circuit Board | Electronic control board for wireless commands and propulsion control. |
| 05 | Fuse Holder & Fuse | Heavy-duty fuse holder with 150 A protective fuse. |

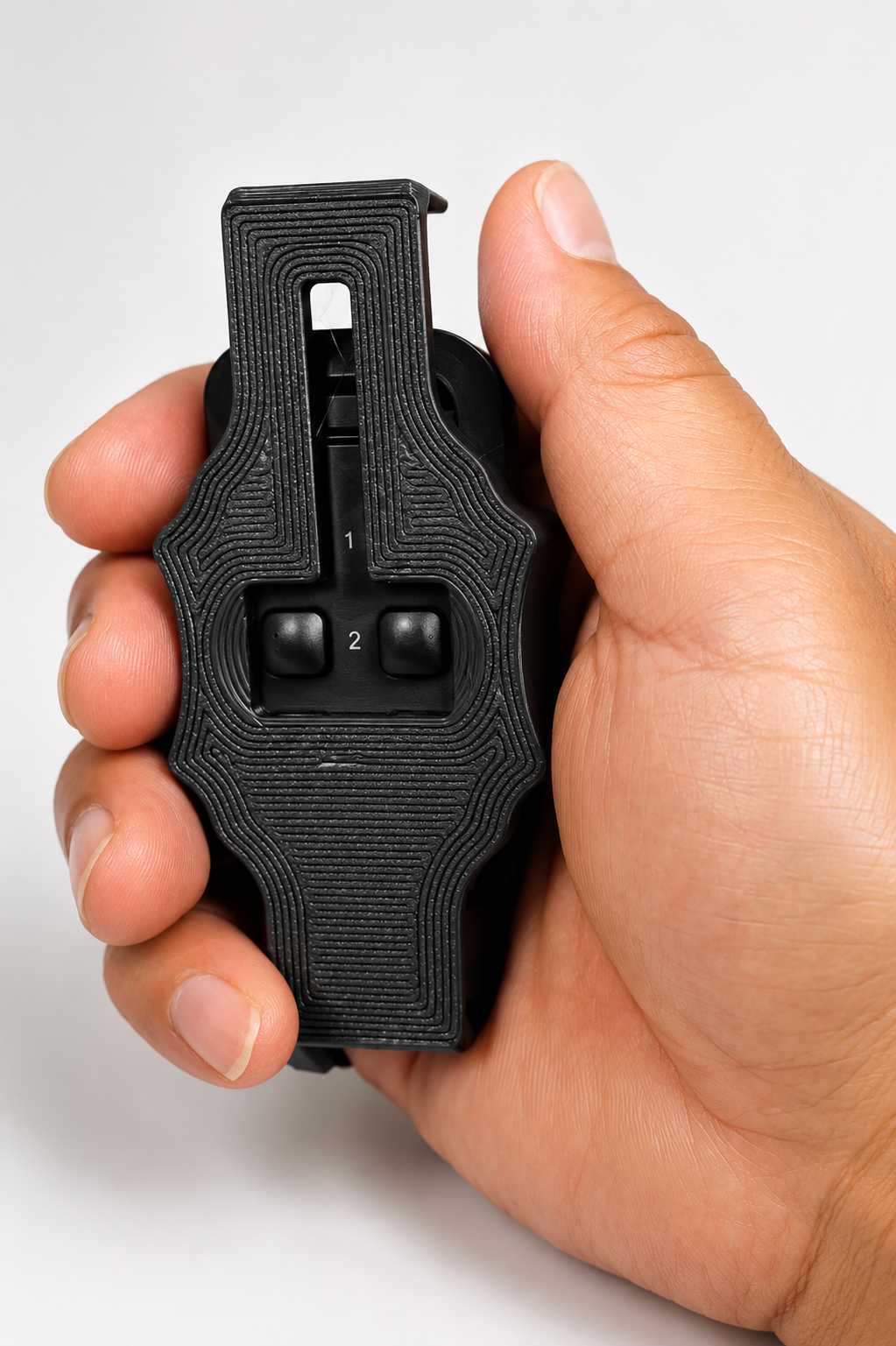

| 06 | Wireless Remote Control | FCC-Certified wireless remote for propulsion control and system operation. |

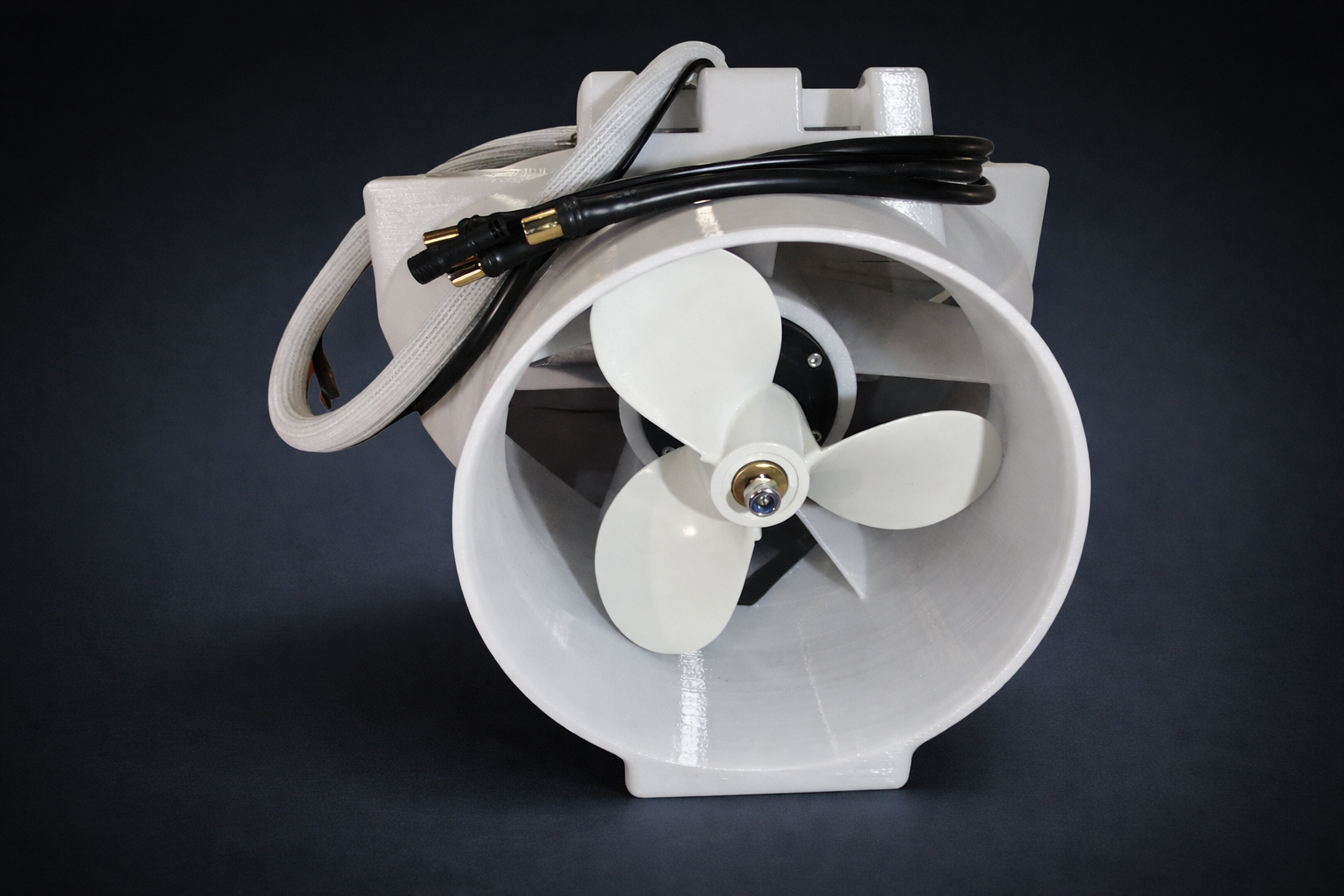

| 07 | Propeller | 7.5-inch diameter, marine-grade aluminum propeller. Made in China. |

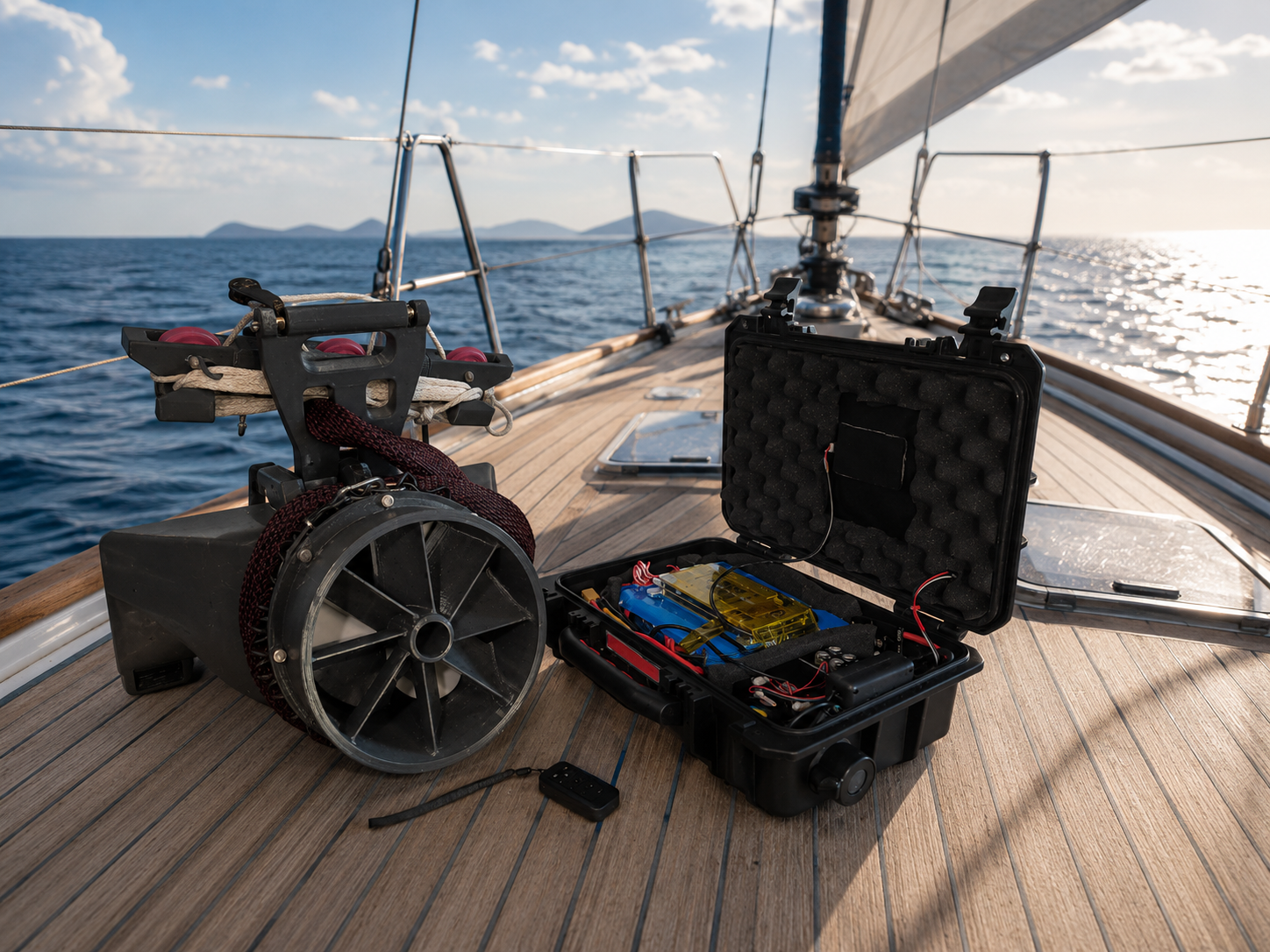

| 08 | Protective Carrying Case | Heavy-duty protective carrying case for storage and transport. |

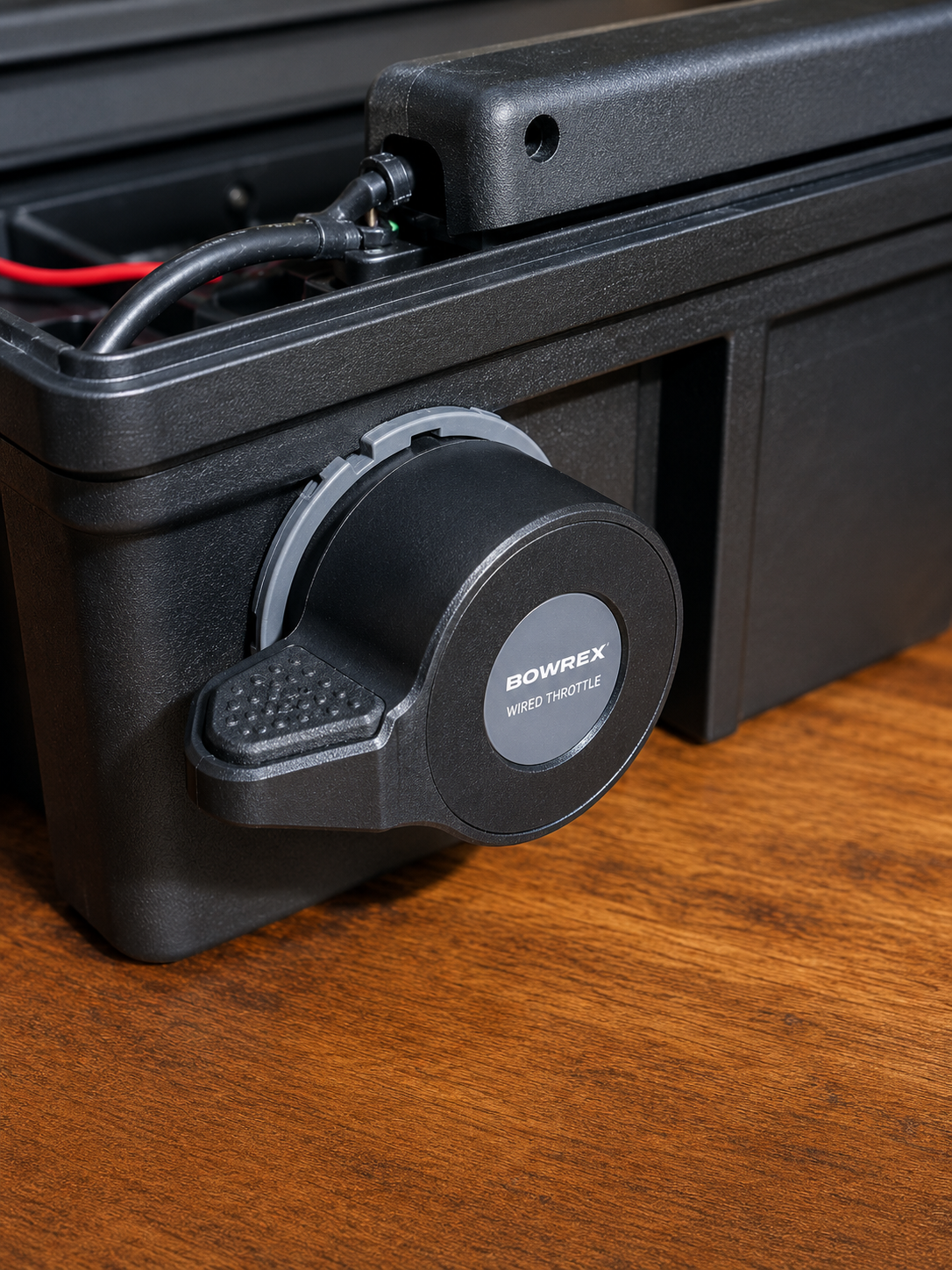

| 09 | Manual Thumb Throttle | Case-mounted manual thumb throttle for emergency backup operation. |

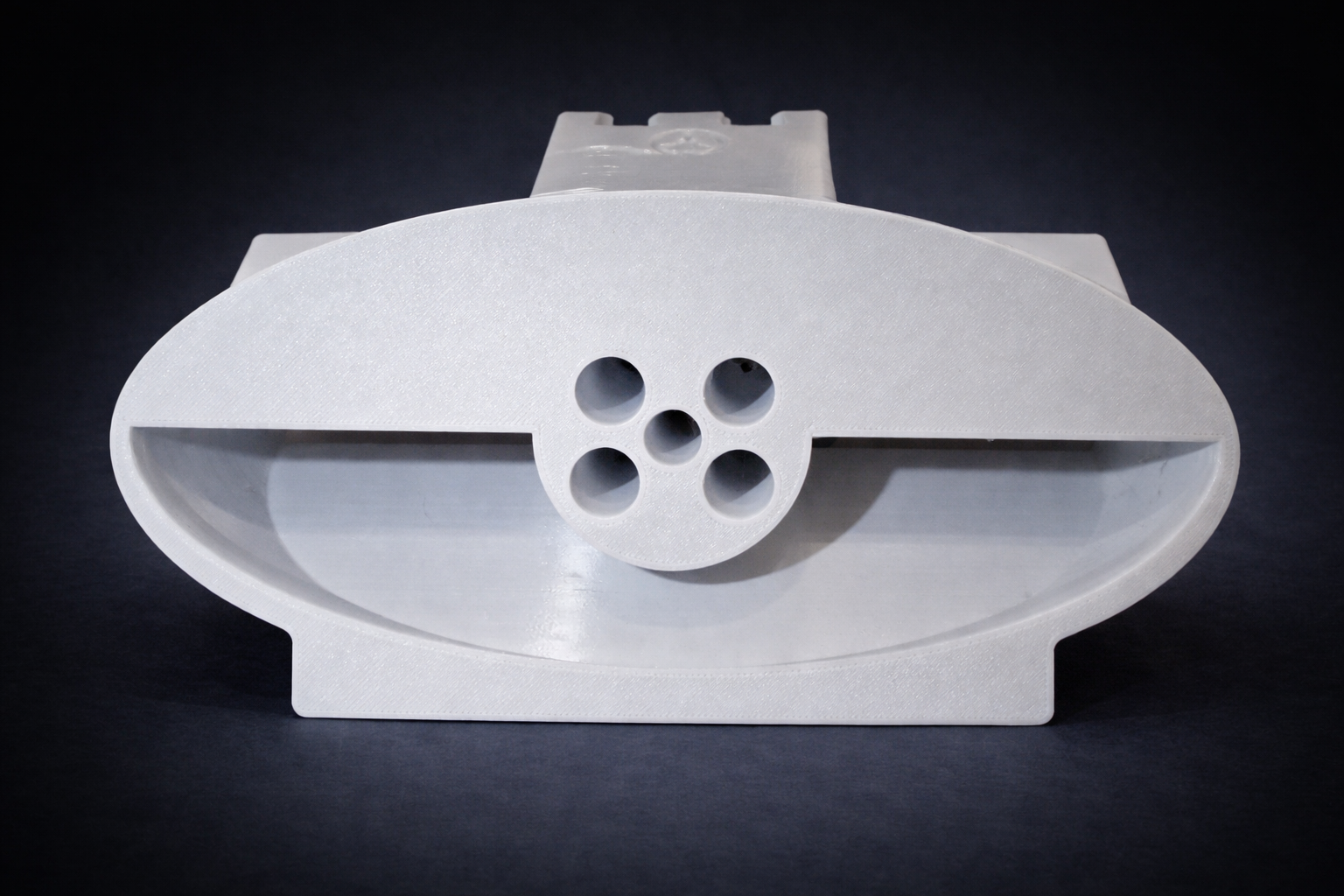

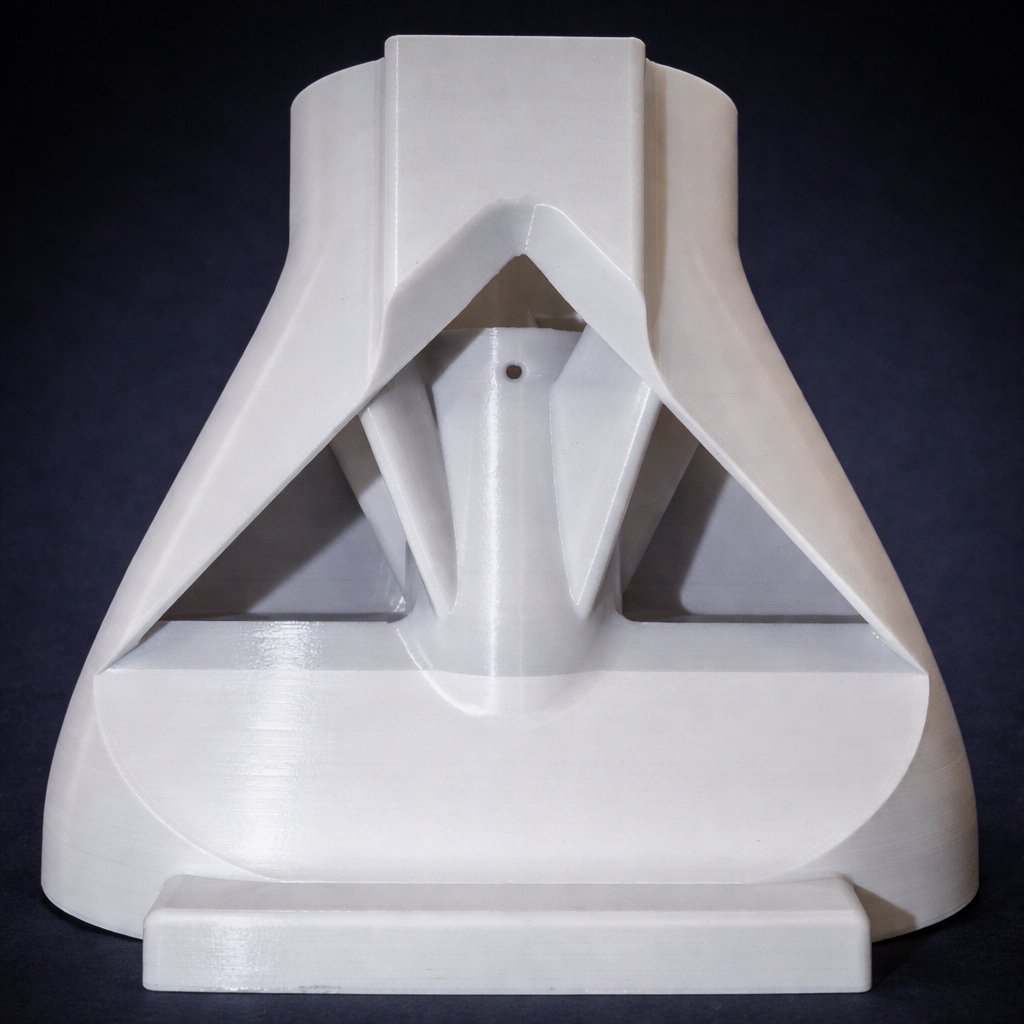

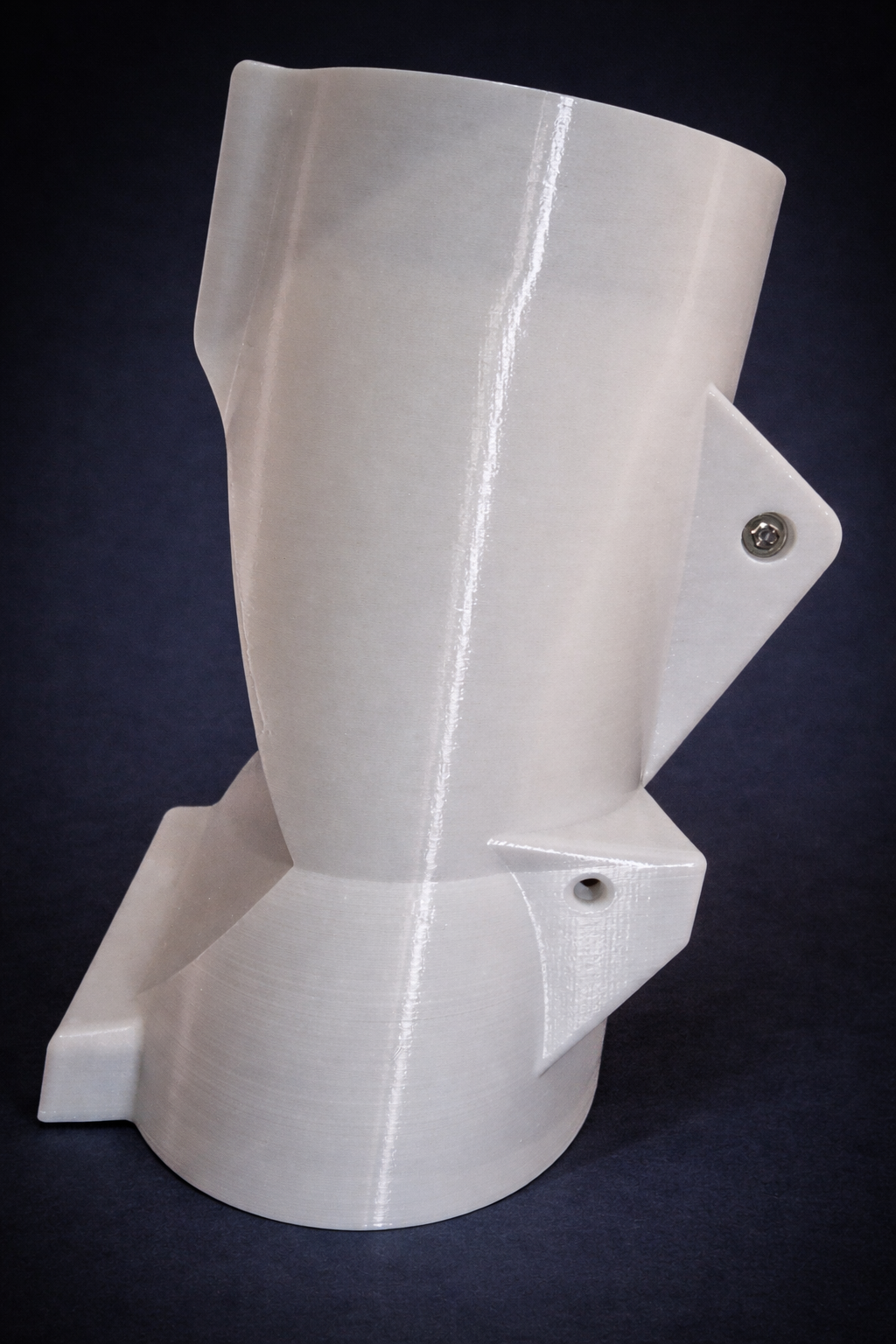

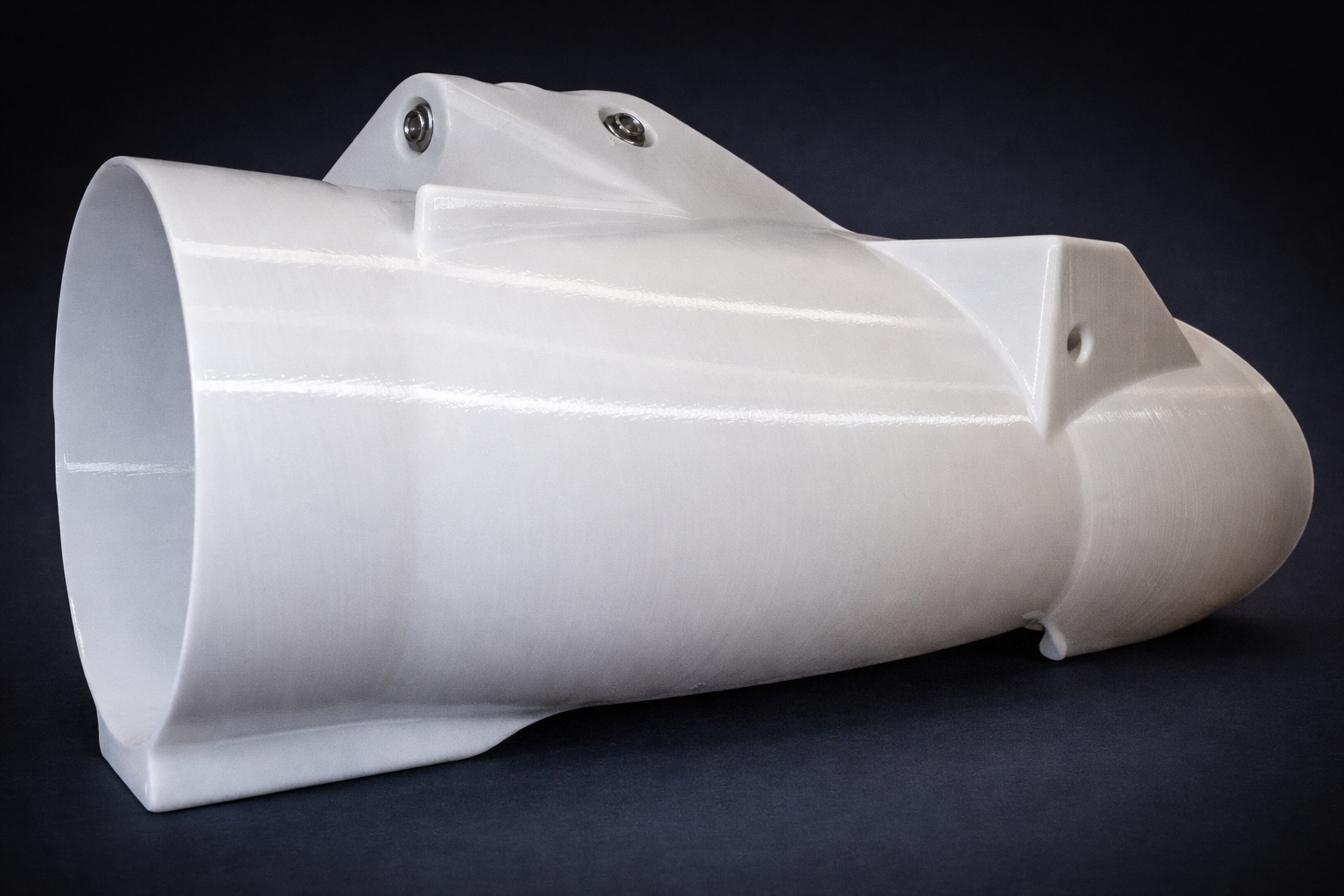

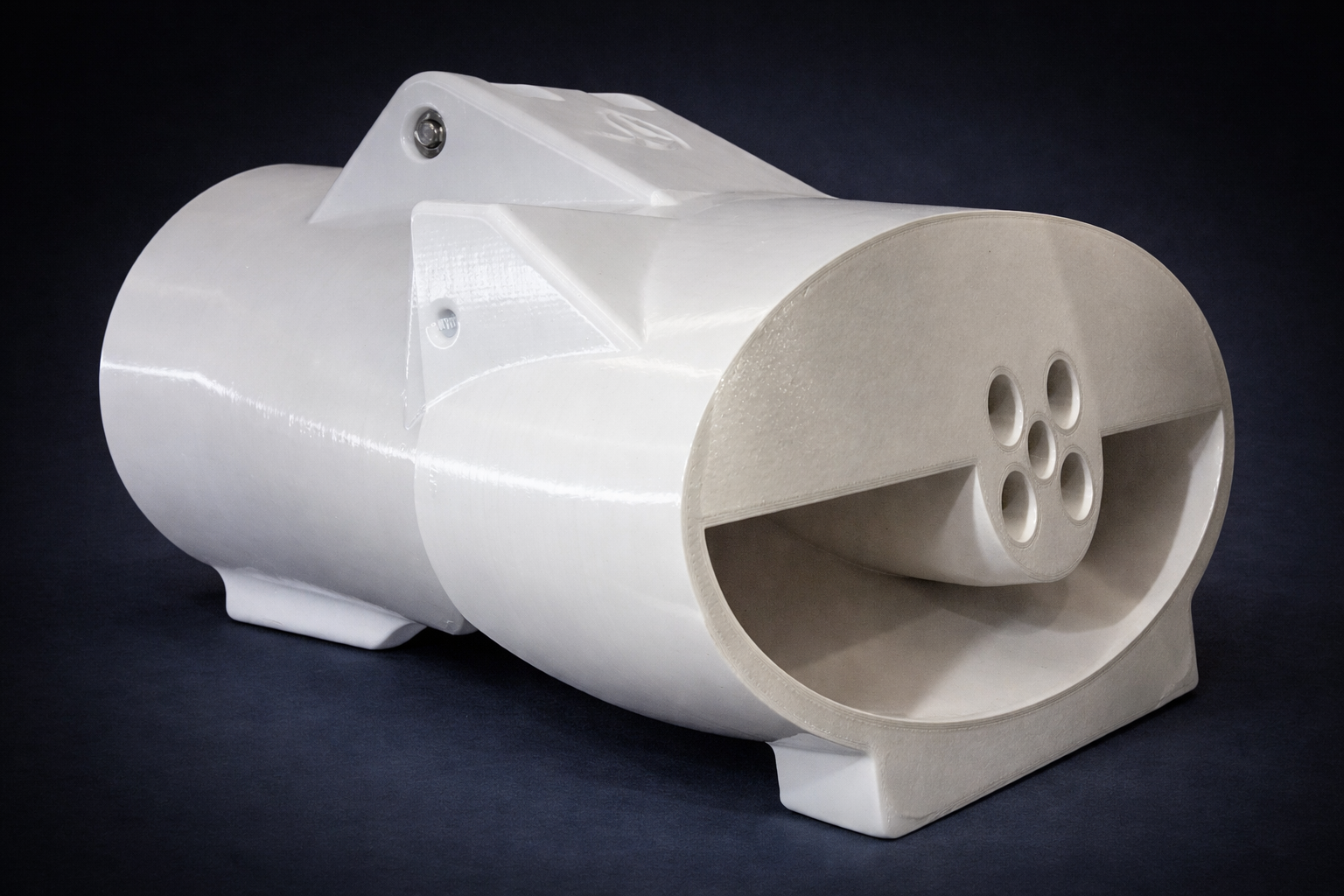

| Propulsion Housing | 3D-printed in Canada using Canadian-made PETG filament. |
Dimensions & Weight
| Component | Width | Height | Depth | Weight |
|---|---|---|---|---|
| Housing (All Parts Included) |
451 mm 17.76 in |
277 mm 10.91 in |
352 mm 13.86 in |
9.07 kg 20 lbs |
| Carrying Case (Battery Included) |
235 mm 9.25 in |
105 mm 4.13 in |
180 mm 7.09 in |
8.16 kg 18 lbs |
Explore BOWREX™ 40.
Product photographs are loaded directly from the BOWREX 40 WooCommerce gallery.

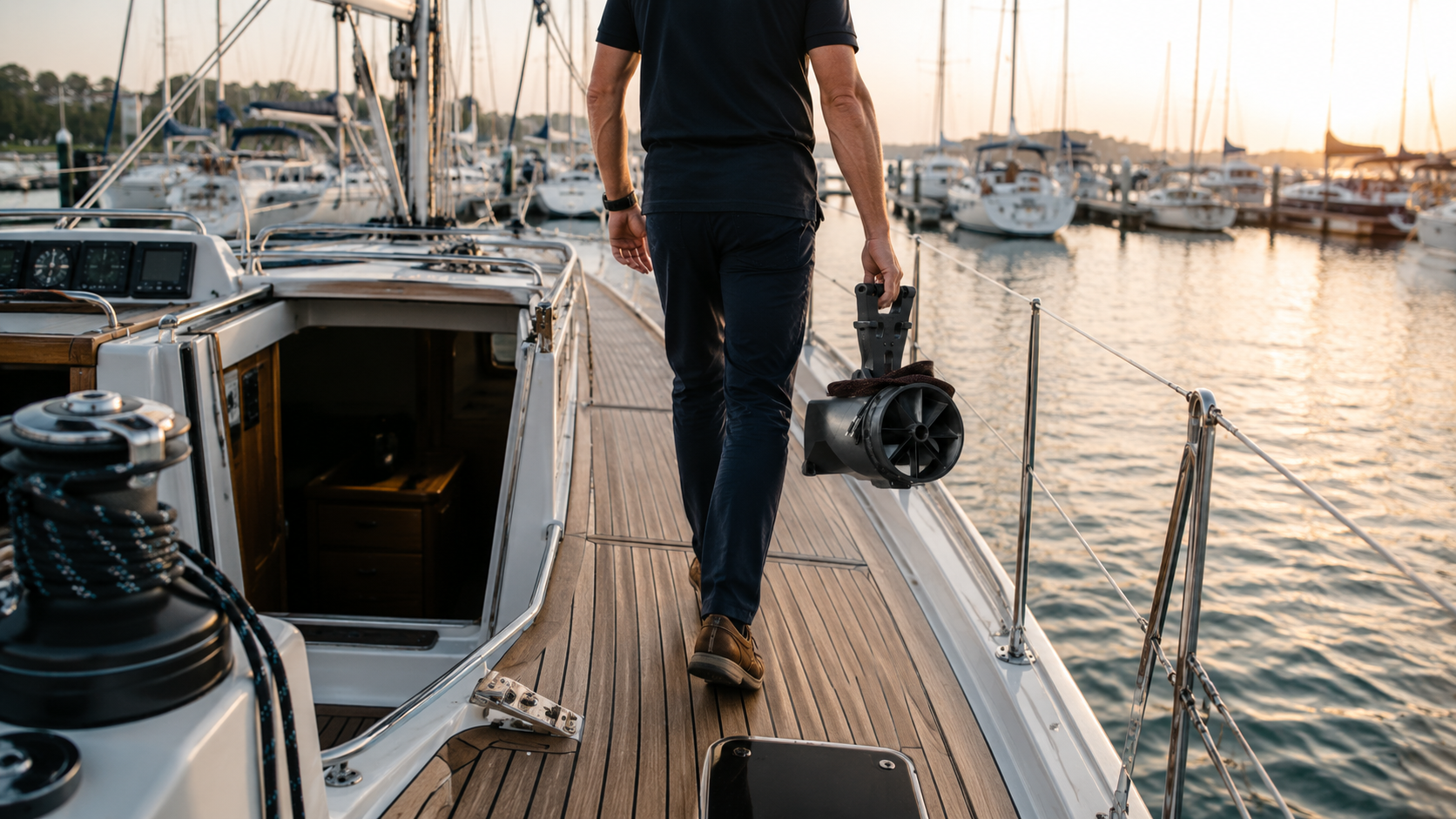

Deploy. Assist. Retrieve.
Deploy
Position and lower the propulsion unit using the Easy-Lift system.
Assist
Apply short, controlled thrust pulses as needed during docking.
Retrieve
Lift the unit from the water and secure it after docking.
Designed for sailboats up to 40 ft.
BOWREX 40 is designed for sailboats and displacement yachts up to 40 ft.
Bracket compatibility depends on the vessel's toe-rail profile and mounting arrangement.
Contact BOWREX Marine to confirm suitability before ordering.
Contact BOWREXChoose Your BOWREX 40.
Purchase the first unit, then add the discounted second unit separately if you want Dual-Side operation.
First BOWREX™ 40
Standard BOWREX 40 · For sailboats up to 40 ft
Approx. USD $1,778
First unit purchased at the current public selling price.
View First BOWREX 40Second BOWREX™ 40
Additional unit · 20% off the current BOWREX 40 selling price
Approx. USD $1,422
One BOWREX 40 is normally all you need. A second unit is intended only for exceptional docking circumstances requiring immediate bow control in either direction.
Second unit only. Requires a first BOWREX 40 in the same cart. This is not a two-unit package.
View Second BOWREX 40To order two units: Add one First BOWREX 40 and one Second BOWREX 40 to your cart separately.
Two BOWREX™ 40 Units. One Joystick.
For docking approaches that may change with wind or current, position one BOWREX 40 on the port side and one on the starboard side. A single joystick controls both units as the standard Dual-Side arrangement, not an optional upgrade.
Move the joystick in the direction you want the bow to turn. The system activates the appropriate side, with one unit providing full pushing thrust at a time.
First unit: CAD $2,495.00 · Second unit: CAD $1,996.00
The combined price is for reference only; it is not a separate bundle product or a one-click purchase.
BOWREX™ 30 — For Sailboats Up to 30 ft
Approx. USD $1,151
Available by request. Contact us to discuss your vessel and order requirements.
Inquire to OrderBattery and electrical requirements: Battery, BMS and charger are not included. BOWREX 40 requires a customer-supplied 21700 lithium-ion 14S4P battery configuration; BOWREX 30 specifies 14S3P. Reference cells: Molicel P45B, Ampace JP40 or equivalent/higher discharge capability. Use a compatible protected BMS (for example JK-B1A24S15P or equivalent) and an Anderson SB120-compatible connector. Do not bypass BMS discharge protection. For Dual-Side use, the two units may share one properly configured battery system and are intended to push one at a time.
All prices and checkout payments are in Canadian dollars (CAD). Approximate USD prices use the latest available Bank of Canada daily exchange rate (2026-10-28); your card issuer or PayPal may use another rate or charge conversion fees. Taxes and shipping are additional. Made to order — ready for shipment within three weeks (21 days) from the order date.
U.S. orders ship under DAP terms. The buyer is responsible for applicable import duties, import taxes, customs clearance and brokerage fees.
Ask About Compatibility
